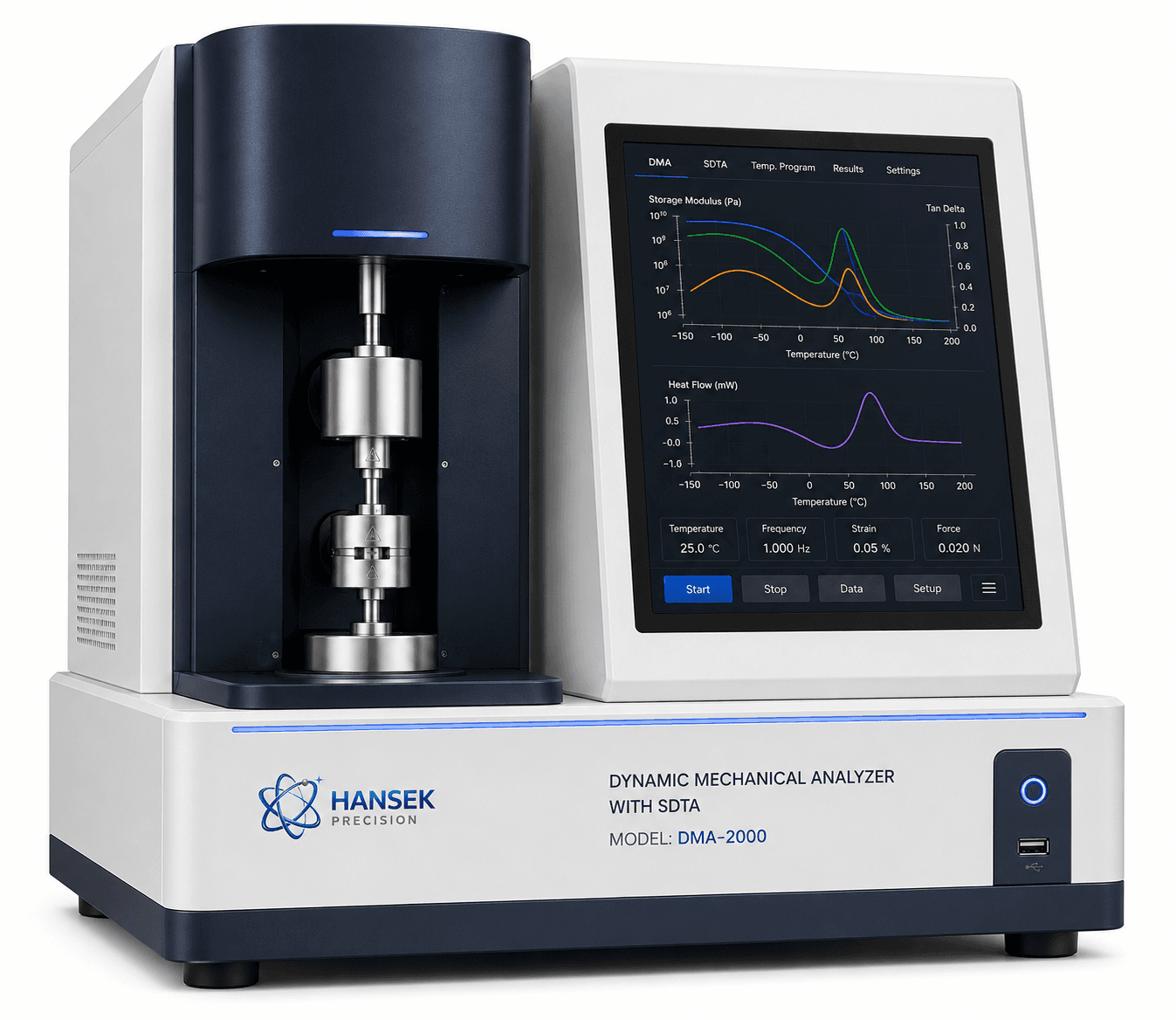

HANSEK Precision DMA-2000 Dynamic Mechanical Analyzer with SDTA
Product Overview
DMA-2000 Dynamic Mechanical Analyzer with SDTA
The HANSEK Precision DMA-2000 Dynamic Mechanical Analyzer with SDTA is a high-performance thermo-mechanical characterization system designed for comprehensive evaluation of the viscoelastic, mechanical, and thermal properties of polymers, elastomers, composites, adhesives, biomaterials, fibers, films, and advanced engineering materials. Combining Dynamic Mechanical Analysis (DMA) with Simultaneous Differential Thermal Analysis (SDTA), the system provides highly accurate insight into material behavior under controlled temperature, frequency, and mechanical loading conditions, making it an indispensable tool for research, product development, and industrial quality assurance.
Engineered with a precision force generation system, high-resolution displacement sensors, intelligent temperature programming, and advanced SDTA technology, the DMA-2000 simultaneously measures storage modulus, loss modulus, damping factor (tan δ), stiffness, creep, stress relaxation, and thermal transitions while recording differential thermal signals in real time. This integrated approach enables comprehensive understanding of phase transitions, glass transition temperature (Tg), crystallization, curing behavior, and material stability with outstanding repeatability and measurement accuracy.
The instrument supports a broad range of testing modes including temperature sweep, frequency sweep, strain sweep, creep, stress relaxation, isothermal testing, multi-frequency analysis, and time-temperature superposition (TTS). Multiple interchangeable sample fixtures accommodate tension, compression, bending, shear, film, powder, fiber, and dual cantilever measurements, allowing researchers to evaluate diverse material types under realistic service conditions while requiring only small sample quantities.
Powered by an advanced Windows-based software platform, the DMA-2000 provides complete instrument automation, real-time graphical analysis, programmable thermal profiles, automated calibration routines, intelligent diagnostics, statistical data evaluation, customizable reporting, and seamless export of experimental results. Its robust mechanical design, precision temperature control, and integrated SDTA capability deliver exceptional long-term reliability, simplified operation, and dependable analytical performance for both routine quality control and advanced scientific research.
Ideal for universities, research institutes, polymer manufacturers, rubber industries, composite developers, aerospace, automotive, pharmaceutical laboratories, electronics manufacturers, battery material research, biomedical engineering, quality assurance laboratories, and industrial R&D centers, the HANSEK Precision DMA-2000 Dynamic Mechanical Analyzer with SDTA provides a future-ready solution for advanced thermo-mechanical characterization, enabling laboratories to accelerate material development, optimize product performance, and achieve reliable, standards-compliant analytical results.
Capabilities
Key Features
Technical Data
Specifications
| Parameter | Value |
|---|---|
| Instrument Type | Dynamic Mechanical Analyzer (DMA) with SDTA |
| Model | DMA-2000 |
| Measurement Principle | Dynamic Mechanical Analysis with Simultaneous Differential Thermal Analysis |
| Temperature Range | -170°C to 600°C |
| Temperature Accuracy | ±0.1°C |
| Temperature Resolution | 0.01°C |
| Heating Rate | 0.1–50°C/min |
| Cooling System | Liquid Nitrogen / Mechanical Cooling (Optional) |
| Frequency Range | 0.001–200 Hz |
| Force Range | 0.001–50 N |
| Force Resolution | 0.0001 N |
| Displacement Resolution | 1 nm |
| Dynamic Strain Range | 0.001–100% |
| Modulus Measurement | Storage Modulus, Loss Modulus, Complex Modulus |
| Damping Measurement | Tan Delta (δ) |
| Test Modes | Tension, Compression, 3-Point Bending, Dual Cantilever, Single Cantilever, Shear |
| Analysis Modes | Temperature Sweep, Frequency Sweep, Strain Sweep, Creep, Stress Relaxation, TTS |
| SDTA Capability | Simultaneous Differential Thermal Analysis |
| Controller | Industrial Microprocessor-Based Control |
| Display | Integrated High-Resolution Touchscreen |
| Software | Windows-Based DMA Analysis Software |
| Data Export | PDF, Excel, CSV |
| Communication | USB / Ethernet |
| Power Supply | AC 220–240 V, 50/60 Hz |
| Compliance | ASTM / ISO / DIN Compatible |
| Applications | Polymers, Rubber, Plastics, Composites, Adhesives, Films, Fibers, Biomaterials |
| Warranty | 12 Months Standard (Extendable) |
